We propose new and valuable forms based on ideas based on solid technology and experience.
LASER TRACKER

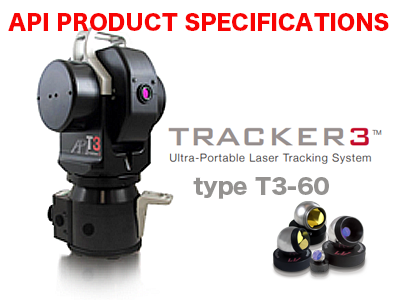

We own API's Ultra-Portable Laser Tracking System
Parameter / Specification
- Range of Measurements Linear Range(Diameter) >120meters
- Angular Range Azimuth: ± 320o Elevation: + 77o/-60o
- Absolute Accuracy of a 3D Coordinate Static Measurement (IFM): ±5ppm (2 sigma)
- Laser HeNe Laser (IFM) Class II (eye safe)
- Resolution: 0.08μm
- Accuracy: > ±0.5 ppm
- IR Laser (ADM) Class I (eye safe)
- Resolution: 0.1μm
- Accuracy: > ±15μm or 1.5ppm

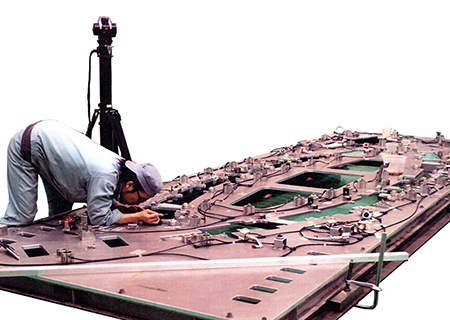

EXAMPLE OF INSPECTION WORK
- Alignment adjustment of aircraft manufacturing parts equipment

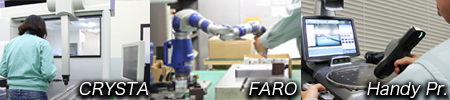

OTHER INSPECTION EQUIPMENT
- CNC 3D Measuring Machine Mitutoyo Crysta Apex C 122010
- 3D Measuring Machine Faro Platinum 4ft
- 3D Measuring Machine Mitutoyo handy probe XM-T1000
